UHF RFID reader

A leading provider of RFID technology DAILY RFID(www.rfid-in-china.com) has announced UHF RFID reader DL6820 with double antenna channels.The RFID reader DL6820 can simultaneously read multiple passive UHF RFID tags at ranges up to 10m. The UHF RFID reader DL6820 is specially for embedded UHF applications such as item-level inventory.

You can visit (http://www.rfid-in-china.com/products_702_1.html)for more info about UHF RFID Reader .

Here is the specification about the UHF RFID reader DL6820:

1) Protocol: ISO18000-6B or ISO18000-6C Gen2
2) Working frequency: 902MHz~928MHz or 920MHz~925MHz
3) Working mode: FHSS or fixed frequency pulse transmitting (set by software)
4) Read speed: The average read time for single card is less than 10ms per 64 bits
5) Reading range: 8m~10m(according to tag and environment)
6) Write speed: 8bits less than 30ms
7) Write distance: 4m~7m(according to tag and environment)
8) Power supply: DC+5V
9) Transmit power: 20dBm~30 dBm(set by software)
10) Read prompt: Buzzer
11) Support Port: RS232 or RS485 or Weigand26/34 or Trigger or Ethernet
12) Dimension: 200mm×190mm×80mm
12) Weight: 1000g


DAILY RFID CO.,LIMITED , which belongs to PAN Group Co., ltd, is the leading company focusing on the research and development of EPC & RFID technology in China.

DAILY RFID specialize in producing arguably the world's most extensive line of RFID Tag,RFID Label,Smart Card and RFID Reader, which are suitable for any vertical markets, and have obtained the National Integrated Circuit Card Register Certificate, IC Card Manufacture License and ISO9001 Quality Management System Certification. Also, we own a factory covering an area of 26,000 square meters.

DAILY's products are designed and manufactured with recognized industry standards relevant to RFID and its markets but most notably for use in the demanding environments to recognize and understand your business's RFID needs. We are commited to providing "Innovative Technology", " Superior, Cost-efficient Product" and " Professional, Efficient Customer Services".

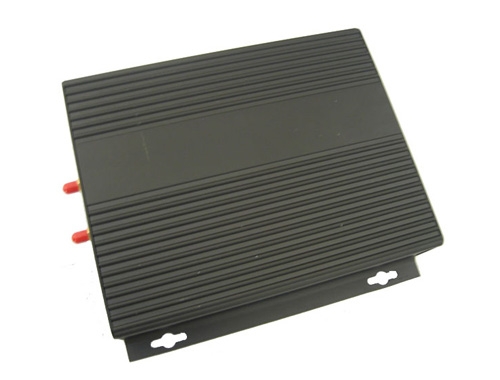

UHF Long Range Reader - DL6820.jpg60.51 KB
